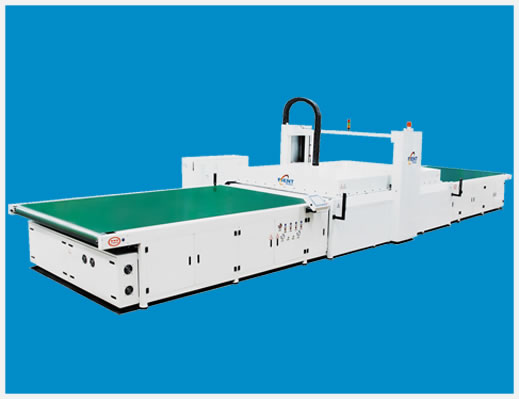

TDCZ-Y Series Laminator
TDCZ-Y Series Laminator
1.Stable automatic loading mode
2.Flexible operate mode, the operation of manual, semi-auto and auto can be adjusted according
-
Detailed description
TDCZ-Y Series Laminator
TDCZ-Y Series Types and Module Sizes
Parameter
TypLaminating
Area(M2)Dimension
(mm)Module Power
(W)Module
Amount
(piece)Capability
(MW/unit)TDCZ-Y-3
3.4×2.2
12000*3000*2270
160
4
10.3
200
4
13
270
3
13.1
TDCZ-Y-4
3.6×2.2
12600*3000*2270
160
4
10.3
200
4
13
270
3
13.1
TDCZ-Y-6
3.8×2.4
13200*3200*2270
160
4
10.3
200
4
13
270
3
13.1
Remarks
The above results are based on the following working hours.
22minutes per laminating cycle, laminating twice per hour, 20 hours per day,
?300 days per year.
Function：
1.Stable automatic loading mode
2.Flexible operate mode, the operation of manual, semi-auto and auto can be adjusted according
to?requirement.
3.Autocontrol by PLC & Touch screen display.
4.The safety and reliability of the equipment advanced by various exact warning system.
5.Method to open lid: Hydraulic lifting system, highly stability
6.Emergency system and safety grating ensure safety and reliability when meet any emergency.
7.High temperature-uniformity obtained by thick heating platen of oil heating
